E500
From：
RONEIND PRECISION TECHOLOGY CO.,LTD
Date：2021-05-08 17:33:03
Hits：430
Belong to：Machine tool
| Roeind ultra precision Machining center series | ||
| Model | E500 LP | |

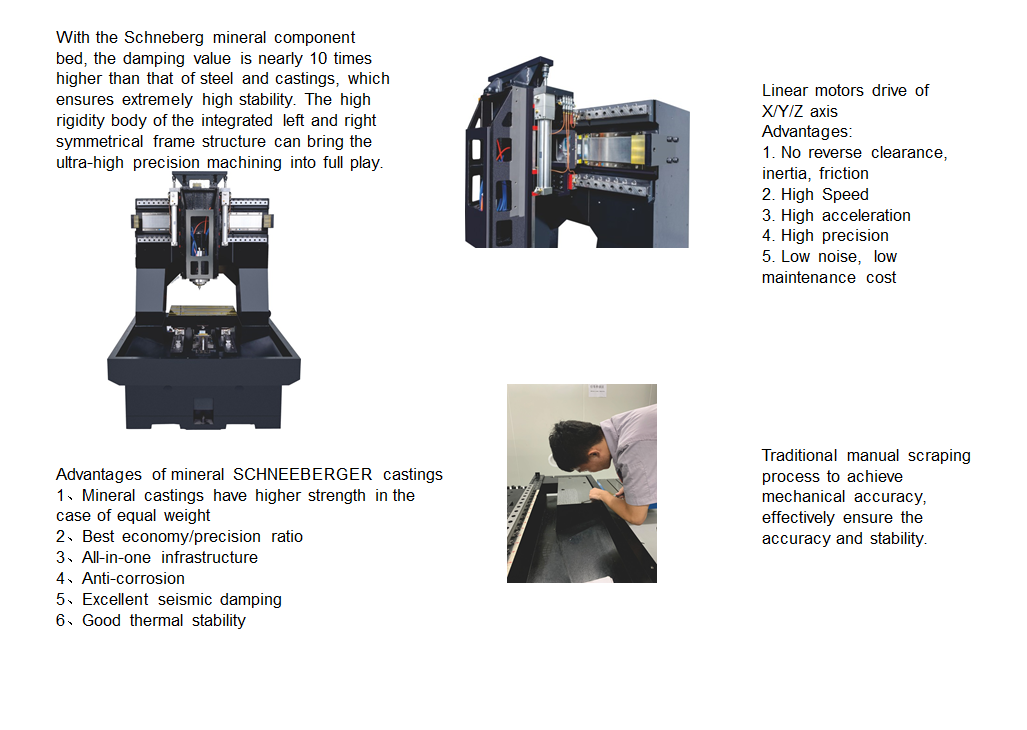

| Mode of driving | Three axis linear motor + three axis roller guide | |
| Control system | SIMENS SYSTEM 828D | |
| Travel | 500×400×220 | |
| Table dimentions | 520×400mm | |

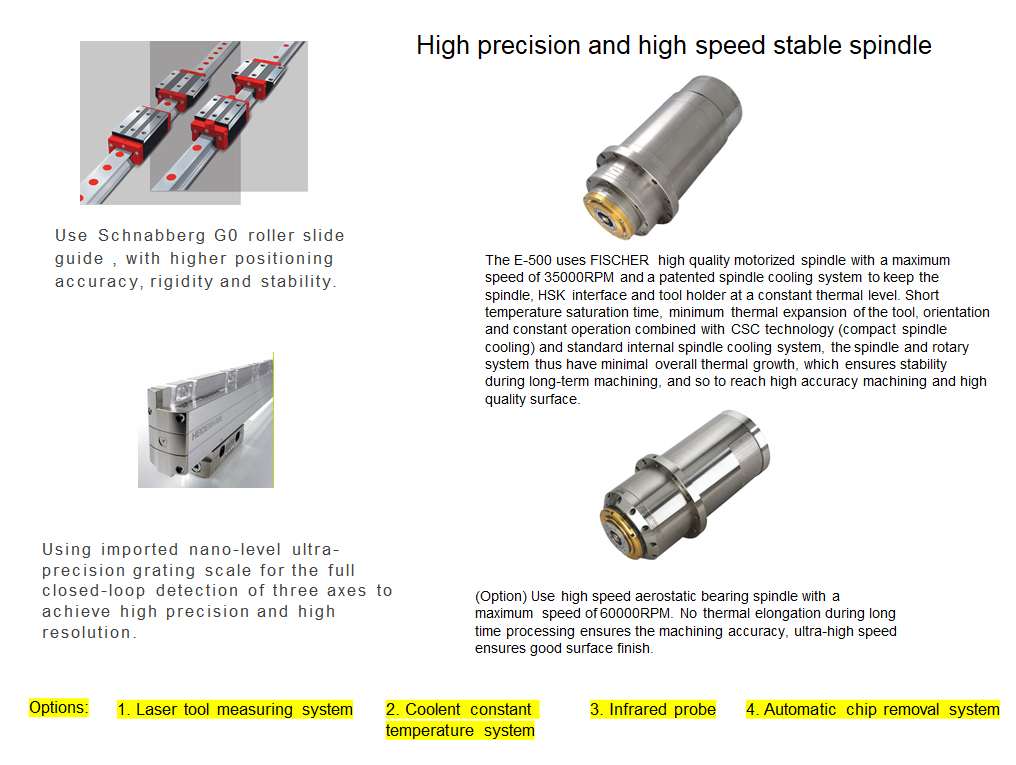

| Spindle speed | 500-32000rmp（8.5Kw，Bearing motorized spindle） | 500-60000rmp（5.5Kw，Gas spindle (option) |
| Spindle specification | HSK-E40 | Direct clamping type (option) |
| Rapid traverse rate | 1-20000mm/min | |
| Minimum traverse unit | 0.00001mm | 0.000001mm（option） |
| Grating scale resolution | 0.001μm | 0.0001μm（option） |
| Tool Magazine | 20 ATC | Direct clamping tool changing system（option） |
| Repeated positioning accuracy | ＜0.001mm | |
| Accuracy of positioning | ＜0.002mm | |
| Air pressure | 0.5Mpa | 0.6Mpa |

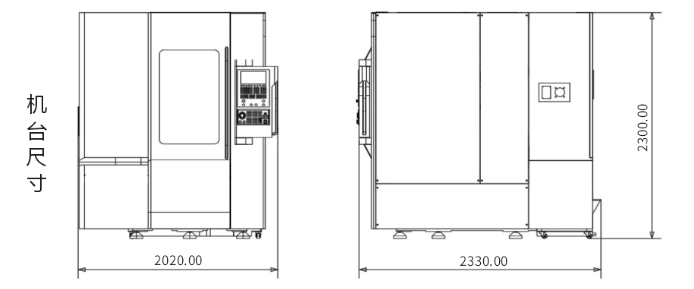

| Machine size | 2330*2020*2300mm | |
| Machine Weight | 5400Kg | |
| Remarks: The datas of processing accuracy mentioned in this catalog are obtained under the standard conditions of constant temperature (20±1℃) and humidity, with measurement standard VDI3441. Please kindly understand that if the processing conditions of the site cannot meet the above temperature and humidity, the processing accuracy will not be able to reach the datas list in this catalog. | ||
