S500
From：
RONEIND PRECISION TECHOLOGY CO.,LTD
Date：2021-05-08 17:32:35
Hits：527
Belong to：Machine tool
vHigh speed precision electric spindle (Aerostatic bearing spindle) +linear motor drive + Minimum setting unit 0.01um
vThe repeated positioning accuracy reaches ±0.5um（Tested in a thermostatic workshop）
vUse Schneberg mineral component bed and super precision Schnabberg roller guide
vWith full axis (X · Y · Z) high-speed bilinear motor drive and high rigidity left and right symmetrical frame structure, the machine keeps stable high-precision machining even for long time operation, thus it can achieve the ultra-precision machining effect required by customers.
vTraditional manual scraping process to achieve mechanical accuracy, effectively ensure the accuracy and stability

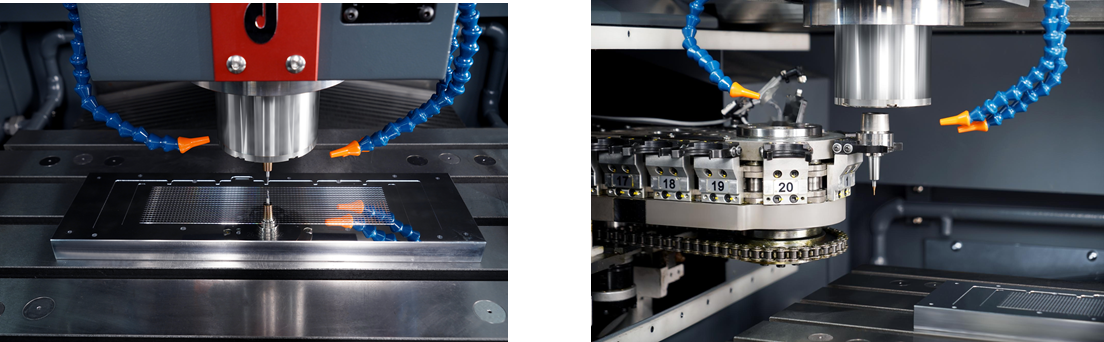

With ultra-precision motorized spindle, oil and gas lubrication cooling system, the spindle and rotating system of the overall heat growth is minimal, which ensure long-term processing stability, high efficiency, high precision, high quality processing requirements.
Options
Product application field
With ultra-precision motorized spindle, oil and gas lubrication cooling system, the spindle and rotating system of the overall heat growth is minimal, which ensure long-term processing stability, high efficiency, high precision, high quality processing requirements.
Options
| 1）Temperature control device |
| 2）Spindle thermal displacement compensation |
| 3）Auto power out |
| 4）laser tool measuring system |
| 5）Infrared probe |
| 6）Coolent constant temperature system |
| 7）Automatic chip removal system |
Product application field
vOptical lens assembly mold and optical imaging mold
vPrecision Hardware Parts Processing
vUltra-precision aerospace parts processing
vAutomobile headlight mold processing
vPrecision medical device parts and molds
vPrecision plastic mould
vVarious precision connector mold of IT and automotive appliances
vMolds of LED lighting and LCD display backlight module
vProcessing of 5G communication accessories
vmirror superfinishing of infrared laser parts
| Roeind ultra precision Machining center series | ||
| Model | S500 | |
| Mode of driving | Three axis linear motor + three axis roller guide | |
| Control system | SIMENS SYSTEM 840D | |
| Travel | 500×400×240 | |
| Table dimentions | 700×425mm | |
| Spindle speed | 500-42000rmp（15Kw，Bearing motorized spindle） | 500-60000rmp（2.5Kw，Gas spindle (option) |
| Spindle specification | HSK-E40 | Direct clamping type (option) |
| Rapid traverse rate | 1-20000mm/min | |
| Minimum traverse unit | 0.000001mm | |
| Grating scale resolution | 0.0001μm | |
| Tool Magazine | 20 ATC | Direct clamping tool changing system（option） |
| Repeated positioning accuracy | ＜0.001mm | |
| Accuracy of positioning | ＜0.002mm | |
| Air pressure | 0.5Mpa | 0.6Mpa |

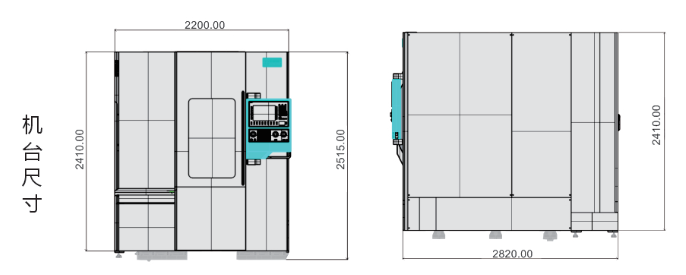

| Machine size | 2820*2200*2515mm | |
| Machine Weight | 9500Kg | |
| Remarks: The datas of processing accuracy mentioned in this catalog are obtained under the standard conditions of constant temperature (20±1℃) and humidity, with measurement standard VDI3441. Please kindly understand that if the processing conditions of the site cannot meet the above temperature and humidity, the processing accuracy will not be able to reach the datas list in this catalog. | ||
