X500
From：
RONEIND PRECISION TECHOLOGY CO.,LTD
Date：2018-05-30 11:50:39
Hits：247
Belong to：Machine tool
Characteristics：
Optimized design of gantry structure
Frame-in-frame structure of Z-axis, with good rigidity, dynamic and thermal symmetry
Double axis and double motor drive balanced design of Y-axis, with higher stability
The whole processing area is protected by stainless steel inner sheet metal
A/C axis linear motor drive, effectively improves the accuracy
CNC rotary swing table, swing Angle +/-130°
The tool magazine with 32 tool positions is integrated into the base bed to save space. (Option: Replacement of two-disk tool magazine with 64 tool positions)
All static stress basic parts are made of gray cast iron, and dynamic parts and assemblies are made of ductile cast iron.
Rotary swing table:
AC axis torque motor direct drive

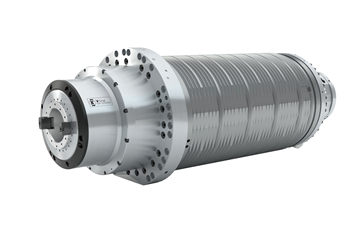

High precision motorized spindle - available for high standard milling processing. High output power and torque effectively improve processing efficiency and quality.

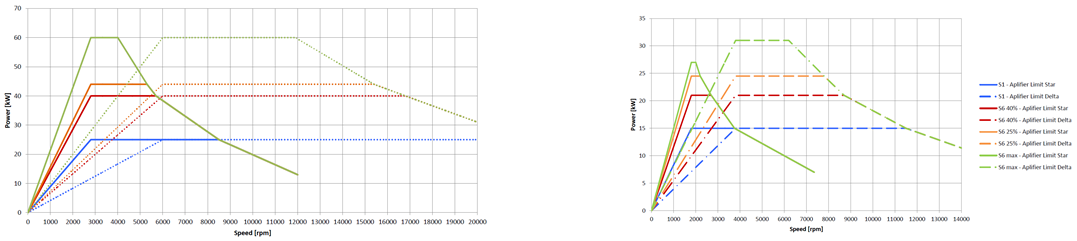

20000RPM Spindle power 14000RPM Spindle power

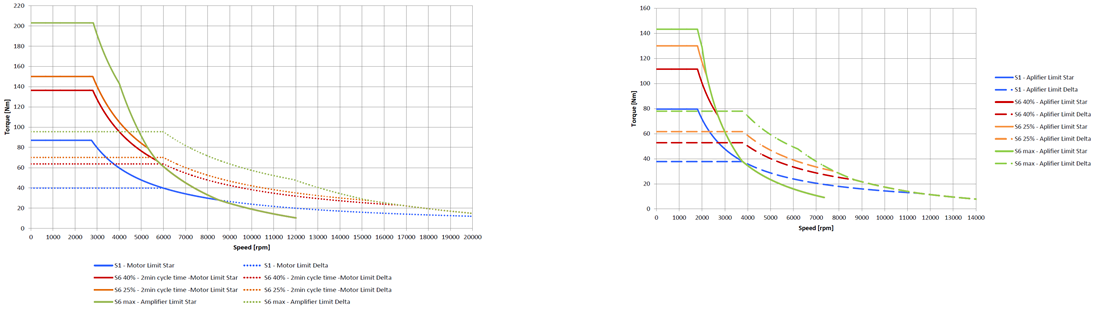

20000RPM Spindle torque 14000RPM Spindle torque
Options
1. High speed motorized spindle 20000RPM
2. Renishaw infrared probe
3. laser tool measuring system
4. Scraper chip conveyor
5. Spindle cooling system(70MPa)
6. Air blow system (0.6MPa)

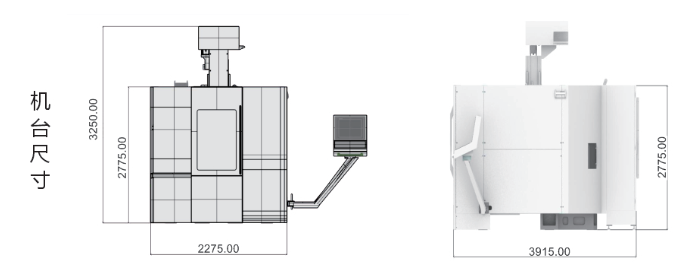

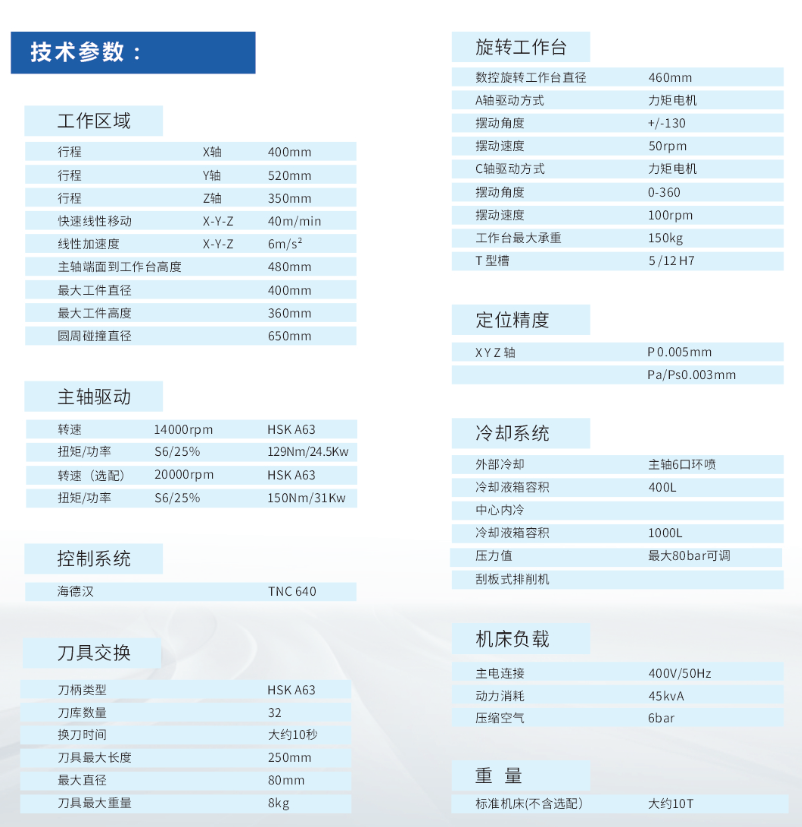

Dimensions
Optimized design of gantry structure
Frame-in-frame structure of Z-axis, with good rigidity, dynamic and thermal symmetry
Double axis and double motor drive balanced design of Y-axis, with higher stability
The whole processing area is protected by stainless steel inner sheet metal
A/C axis linear motor drive, effectively improves the accuracy
CNC rotary swing table, swing Angle +/-130°
The tool magazine with 32 tool positions is integrated into the base bed to save space. (Option: Replacement of two-disk tool magazine with 64 tool positions)
All static stress basic parts are made of gray cast iron, and dynamic parts and assemblies are made of ductile cast iron.
Rotary swing table:
AC axis torque motor direct drive
High precision motorized spindle - available for high standard milling processing. High output power and torque effectively improve processing efficiency and quality.
20000RPM Spindle power 14000RPM Spindle power
20000RPM Spindle torque 14000RPM Spindle torque
Options
1. High speed motorized spindle 20000RPM
2. Renishaw infrared probe
3. laser tool measuring system
4. Scraper chip conveyor
5. Spindle cooling system(70MPa)
6. Air blow system (0.6MPa)
Dimensions
